Description:

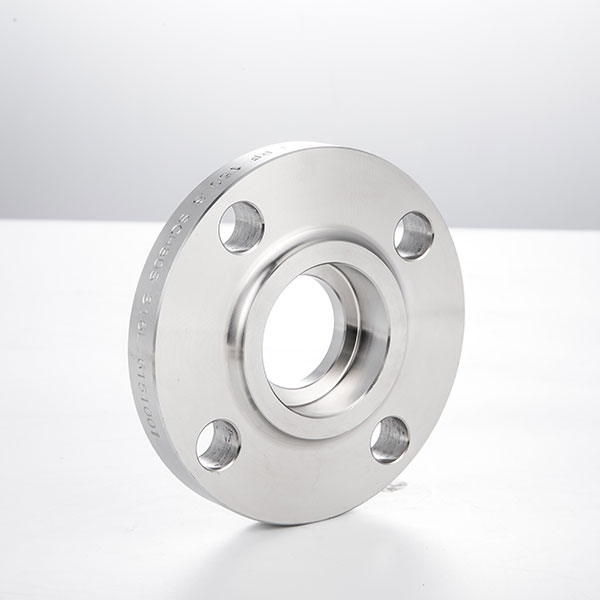

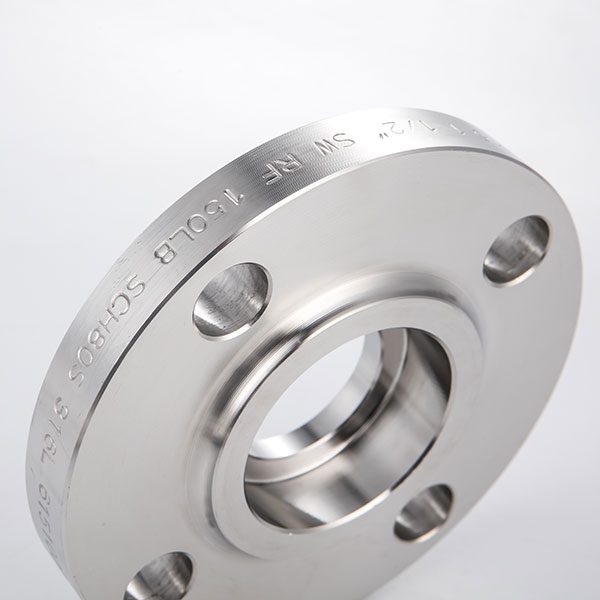

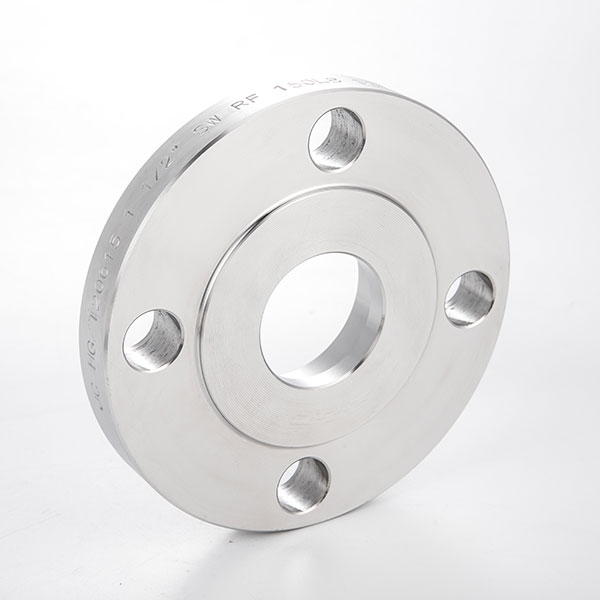

Socket weld flanges are a less common but equally effective connection for flanges which require less overall available space than a traditional weld neck flange, with a counterbore in the center to allow for a clean weld of pipe into the socket.
Applications:
Natural Gas, Petroleum, Chemcial industry, Water Treatment,Deckle,Shipbuilding, Electric power and Nuclear energy Flange
Specifications:
| Standard |
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
|
Class / Pressure |
150#, 300#, 600#, 900#, 1500#, 2500#, 5K ,10K ,16K 20K ,PN6, PN10, PN16, PN25, PN40, PN64 etc. |
|
Size |
1/2’’ to 48’’ |
|
Dimensions |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, JIS B2220 ,BS4504, BS 10, EN-1092, DIN, etc |
|
Material: |
ASTM:304、304L、316、316L、316Ti、317、317L、321、321H... JIS:SUS304、SUS304L、SUS316、SUS316L、SUS316Ti、SUS317L、SUS321、SUS321H... DIN:1.4301、1.4306、1.4401、1.4435、1.4571、1.4436、1.4438、1.4541... GB:0Cr18N9、00Cr19Ni10、0Cr17Ni12Mo2、00Cr17Ni14Mo2、0Cr18Ni12Mo2Ti、0Cr19Ni13Mo3、0Cr19Ni13Mo3、1Cr18Ni9Ti、0Cr18Ni10Ti... Duplex s. s. ,AL,Incomel, Q235A, 20, 16Mn, 16MnR... |
|
Sealing surfaces |
RF and RTJ sealing strip from stock. |
Competitive Advantage:
Custom flange size&fast delivery
